Tube Expanders

Top Plate tube expansion in pans and  juice heaters within sugar mills. Size range from 1.1/2″(38.1mm) to 4.1/2″(114.3mm)

Bottom plate tube expansion in pans and juice heaters within sugar mills. Tube size 1.3/4″(44.5mm)x4″ (101.4mm) O.D. where access to the bottom is restricted.

The STE114 series are general purpose expanders for expanding and flaring boiler tubes, waterwall economiser, riser and airheater tubes.
Tube sizes 2″ (50.8mm) -4.1/2″ (114.3mm) O.D.
Tube sheet 1/2″ (12.7mm) -2.5/8″ (66.7mm) thickness

The STEAF 3 series is a cost efficient tool used in applications where only a small number of tubes require expanding with flaring.
Tube sizes 7/8″ (22.2mm) -4.1/2″ (114.3mm) O.D.
Tube sheet 1/2″ (12.7mm) -2.5/8″ (66.7mm) thickness

The STEA series is a cost efficient tool used in applications where only a small number of tubes require expanding without flaring.
Tube sizes 7/8″(22.2mm)-4.1/2″(114.3mm)O.D.
Tube sheet 1/2″(12.7mm)-2.5/8″(66.7mm) thickness

The STEABF 3 series is a high productivity tool designed with a thrust assembly where flaring is required.
Tube sizes 2″(50.8mm)-4.1/2″(114.3mm) O.D.
Tube sheet 1/2″(12.7mm)-2.5/8″(66.7mm) thickness

The STEAB series is a high productivity tool designed with a thrust assembly where flaring is not required.
Tube sizes 2″ (50.8mm) -4.1/2″ (114.3mm) O.D.
Tube sheet 1/2″ (12.7mm) -2.5/8″ (66.7mm) thickness

The STEAB SR series is a high productivity tool designed for thick tube sheets where flaring is required
Tube sizes 2″ (50.8mm) -4.1/2″ (114.3mm) O.D.
Tube sheet 1.1/2″ (38.1mm) -4″ (101.6mm) thickness

The STEAB LR series is a high productivity tool designed for thick tube sheets where flaring is not required
Tube sizes 2″ (50.8mm) -4.1/2″ (114.3mm) O.D.
Tube sheet 1/2″ (12.7mm) -3″ (76.2mm) thickness

STEV series expander is used for repair and building of boilers with thin tubes, approximately as fast as conventional tube expanders.
Tube sizes 1″ (25.4mm) -3″ (76.2mm)

STECBE series combines beading and expanding in one operation reducing individual operations and increasing the effciency of the operator.
Tube sizes 1″(25. 4mm)-3″(76.2mm)

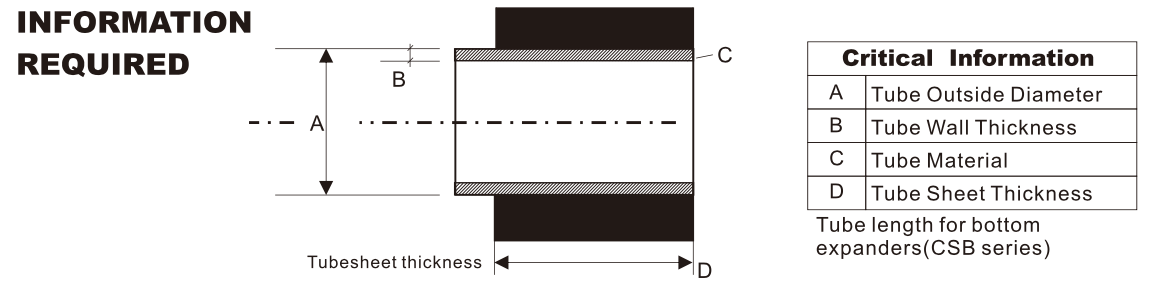

Tube expanders tor use in refineries are often specifically size designed to suit particular applications. Please contact technical@skatoskalo.co.uk specifying the tube size, tube sheet size and configuration (drawing if available), in order for the correct expander to be manufactured.

STE900 series for small tubes
Tube sizes 1/2″ (12.7mm) to 1.1/2″ (38.1mm) O.D.
Tube sheets 1/2″ (12.7mm) to 2.1/4″ (57. 2mm) thickness

STE800 series tube expander available in three and five roller versions
Tube sizes 1/2″ (12. 7mm) -1.1/2″ (38.1mm) O .D.
Tube sheets 1/2″ (12.7mm) -2.1/4″ (57.2mm) thickness

STE1300 series
Tube sizes 3/8″ (10mm) O.D.
Tube sheets 3/4″ (19mm) to 3.3/4″ (95.3mm) thickness

STE1200 series for small tubes available in three and five roller versions
Tube sizes 1/2″ (12.7mm) to 1.1/2″ (38.1mm) O.D.
Tube sheets 1/2″ (12.7mm) to 2 .1/4″ (57.2mm) thickness

STE AL series
Tube sizes 5/16″ (7.93mm) to 1.5/8″(41.3mm) O. D.
Tube sheets 5/8″ (15.9mm) to 1″(25.4m) thickness

STES series
Tube sizes 1/4″ (6 3mm) to 3/8″ (10mm) O. D.
Tube sheets 3/4″ (19mm) to 1.1/4″ (31.75mm) thickness
